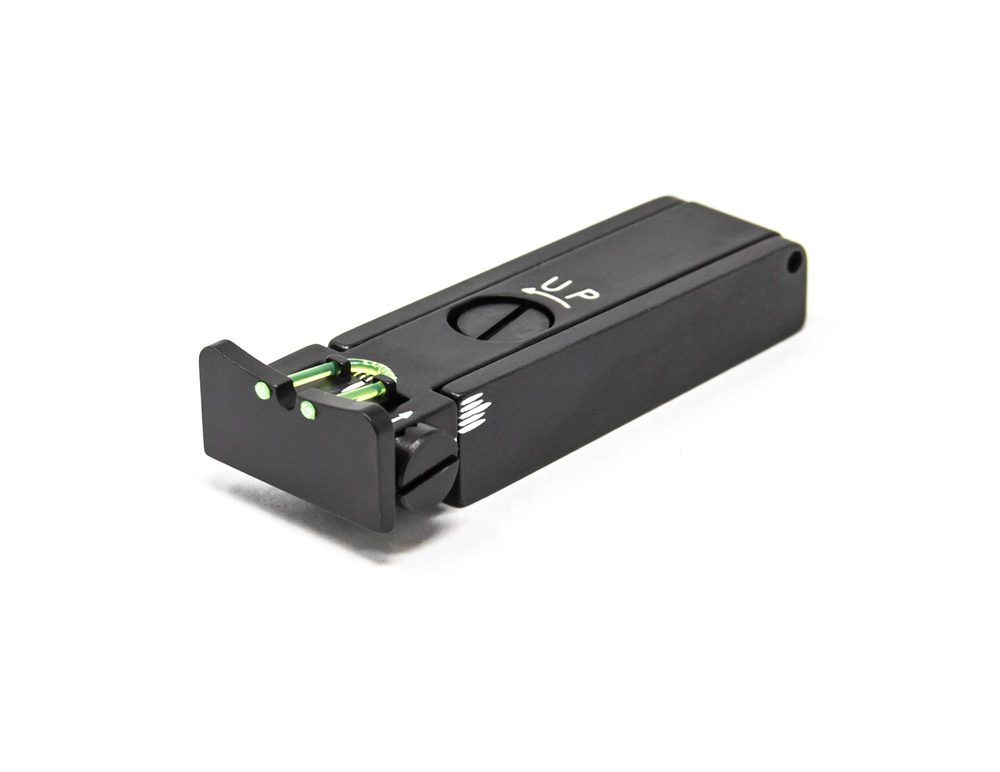

Fusion Firearms Long-Gun Rear Adjustable Fiber Optic Sight – BAR09F
LPA Rear Sight Model: Bar-09F.
About this product
LPA Rear Sight Model: Bar-09F. Fiber optic, fully adjustable sight assembly for Long-Guns. This sight works with many OEM standard shotgun and rifle sights for direct mounting on the receiver or barrel. This is a high precision fully adjustable sight made for use on Rifle/Shotgun barrels and/or mounting on the receiver. Two supplied 6-48 gun screws are needed to secure the sight assembly to the receiver/action or barrel. This is a high quality sight assembly made of all steel construction. Fully adjustable, micro ratchet adjustments and white line graduations for precision movements.
- Measurements:
- Length: 2.180″
- Base Width: .590″
- Height: .535″
- Blade Height: .410″
- Blade Width: .790″
- Notch Width: .085″
- Under Radius Approx: 13/32″
- Retaining screw clearance holes in base are .140" diameter and center to center is .562(9/16)”
| Sight Style | Fiber Optic |
|---|---|
| Weight | 1 lb |
Delaware Firearms is an authorized online retailer for Fusion Firearms 1911 products. Sight ships directly to your door; no sales tax is collected on Delaware orders.
Specifications
| Sight Style | Fiber Optic |
|---|---|
| Weight | 1 lb |
